PKW Custom Brewhouses – 5 Barrel to 30 Barrel

Custom brewhouses from Portland Kettle Works in sizes 5 BBL to 30 BBL will meet the requirements of craft brewers around the world.

Custom Brewhouses From Portland Kettle Works

PKW custom brewhouse designs are based on our experience in developing more than 4,000 craft beverage containers, as well as launching more than 375 new breweries around the world since 2011. Our clients enjoy award-winning results in all styles of beer worldwide.

All PKW custom brewhouses include these high-performance features that make your production day easy and enjoyable:

  • KettleMaster AUTOMATION PLC/HMI controls that store recipes for exact repeatability
  • Standard modular skid for easy of transport and installation
  • Minimum 140% Brew Kettle Capacity
  • Industry leading geometry that allows for high efficiency brewing across every style of beer
  • Skid mounted on casters designs on a standard standard 2 vessel platform
  • Standard Swing link manifolds
  • Standard Internal steam clandrias
  • Variable Speed Pump(s) controlled by Lenze Variable Frequency Drives (VFD’s)
  • Standard Clean-In-Place CIP facilities in all vessels
  • High-performance Lauter Tun Screens
  • Integrated and intuitive sanitary piping
  • Convenient
  • working height from floor grade
  • Open top Brew Kettle
  • User-friendly sample ports
  • Integrated pump and plate chiller loops
  • High accuracy flow meters and automated shut off systems

Portland Kettle Works brewhouses have earned a reputation as some of the best performing, efficient, and eye-catching brewhouses to be found anywhere. Our breweries will shorten your day and save you money for years to come.

Portland Kettle Works’ brewhouses provide brewers with several key advantages:

  • A worldwide reputation for industry-leading American design, engineering and fabrication
  • Built with and tested by some of America’s leading craft brewers
  • Environmentally friendly and energy saving
  • Save Time and Labor
  • Ergonomics and Safety

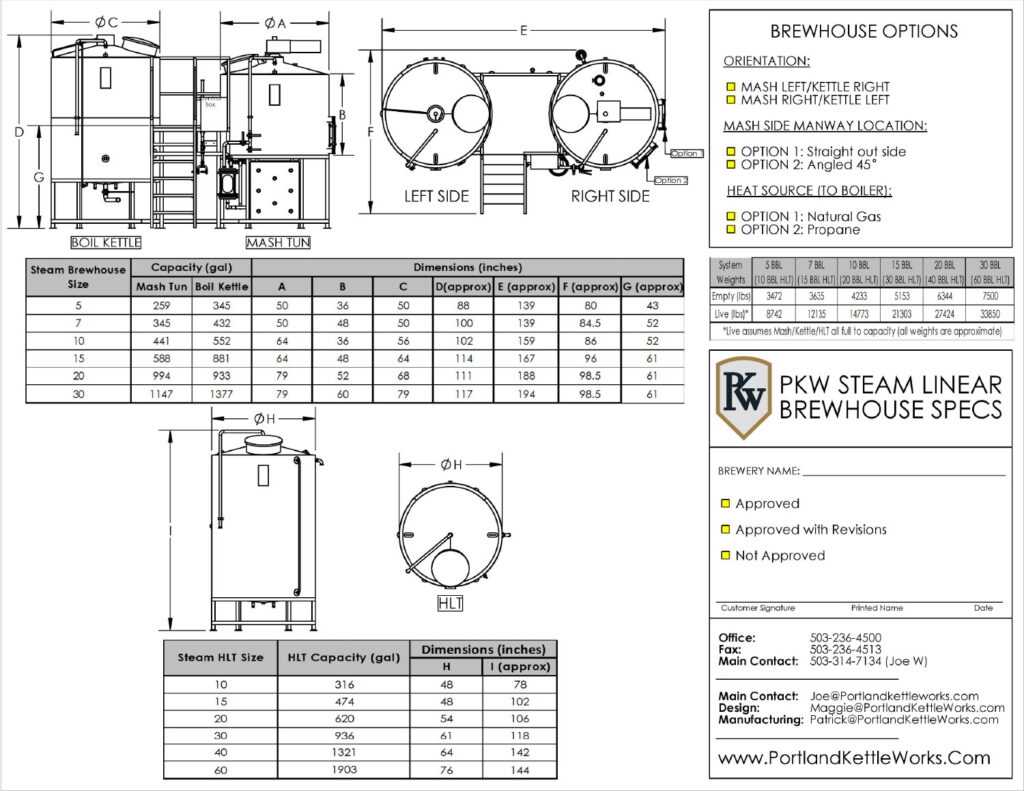

PKW Custom Brewhouse Specifications

PKW Custom Brewhouses

PKW Custom Brewhouses (5 to 30 bbl) Spec Sheet (Click to download)

As with all our brewing equipment, Portland Kettle Works brewhouses are designed and manufactured to exacting standards:

Standard capacities available:

  • BBL:  5, 7, 10, 15, 20, 30
  • HL:  5.9, 8.2, 11.7, 17.6, 23.5, 35.2
  • Other capacities available upon request

Environmentally-friendly and energy-saving features:

  • Extra-large capacity hot liquor tank (HLT) for ample storage and recovery of hot water in the brewery so that none of your heated water goes down the drain
  • Convect-O-Matic proprietary internal calandria on the HLT continually agitates the HLT contents resulting in a consistent liquor temperature throughout the vessel without the use of an expensive and maintenance intensive pump
  • State-of-the-art energy efficient motor drive systems are installed on every brewery pump motor reducing overloading and optimizing energy consumption to the pumping task
  • Every brewery tank is insulated keeping the heat where it belongs, in the brew, not in the atmosphere
  • 99% evacuation of evaporate from the brew kettle results in lower humidity and heat load in the brewery
  • 12V LED lights are provided on all lighted elements for reduced energy consumption

Time and labor-saving features:

  • Oversized HLT equates to zero downtime when double batching, running CIP, or performing keg cleaning operations
  • Kettles and brew deck frame fabricated from 100% certified 304 food-grade stainless steel
  • 3-piece modular design for easy installation in almost any space
  • Brew kettle includes integrated whirlpool
  • Brewhouses are pre-wired, pre-piped and pre-tested for easy shipping, rigging, installation, and startup
  • Steam configurations fired by either electric or gas-powered boilers (direct fire options available)
  • All steam-fired hot liquor tanks (HLT) and brew kettles equipped with PKW’s proprietary internal calandria
  • All mechanical components provide infinite control and precise repetition to create an efficient brewing process
  • Designed with features and geometry to diminish oxidation, tannins, and diacetyls

Ergonomics and safety features:

  • PKW brewhouses are a breeze and pleasure to operate with no dead legs, redundancies or complicated processes to memorize
  • Control panel access and brew decks designed to minimize fatigue and create a safer working space
  • UL 508A-compliant electrical controls are accessible from the front of the brewhouse. Operators have immediate access to all functions including the system kill switch
  • Non-skid surfaces provided on all operator work platforms

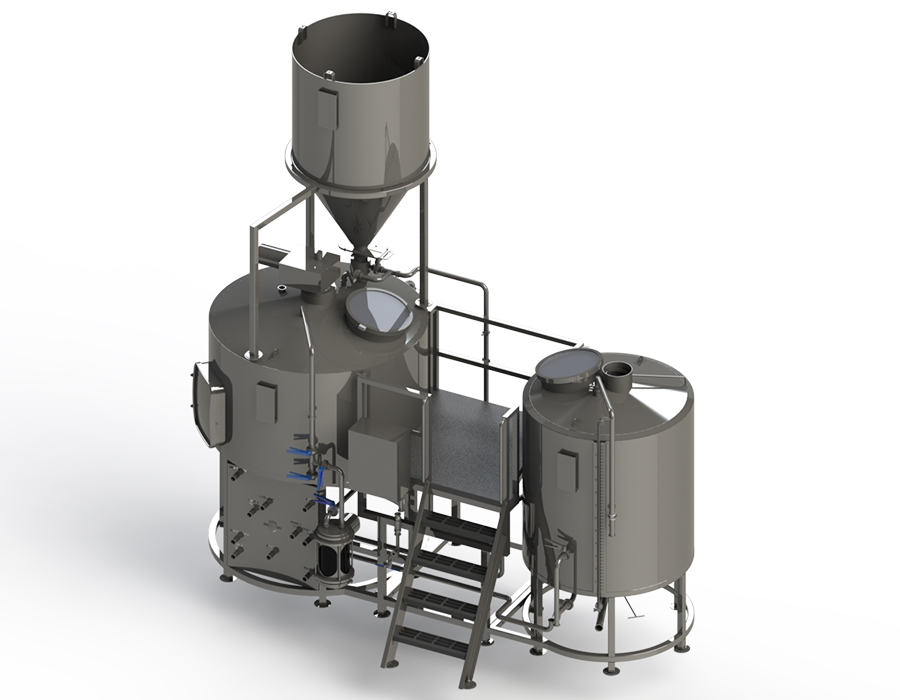

PKW Custom 5 to 30 Barrel Brewhouses

Custom Brewhouses from PKW

PKW Custom 5 to 30 Barrel Brewhouses
