Vitis open top stackable wine totes are used for oxidative wine fermentation and storage of juice and grapes. Used primarily for red wines, during fermenting the open tank top gives the winemaker access to the “cap” which is formed from the wine skins on the top of the tank as the wine ferments. The winemaker, using a paddle, can gently stir or punch the cap back down into the wine in the tank.
Vitis open top stackable wine totes are all 500 gallon capacity and include lifting tracks for a standard forklift so they can be easily stacked up to three high to conserve precious winery floorspace.
Custom Configurations Available – Please Contact MTUSA
Standard features of Vitis open top wine totes include:
- Vitis sidewall:
- Interior finish: smooth 2-B interior finish, blended and made sanitary at all weldment
- Dimple jacket: our energy-saving precision laser-welded dimple cooling jackets are hydroformed and baffled to maximize turbulence and minimize load on the glycol cooling system. Both low- and high-pressure options are available
- Dual-action manway (round): top inswing and outswing manway for complete racking access
- Dump-out manway (square): outswing only and located at base of sidewall allows complete cleanout of pomace and wash debris
- Drainage sump: both sump and ports are housed in a precision engineered, removable drain screen inside the tank
- Racking port
- Temperature Thermowell port: includes protective temperature control shield
- Sample port: includes a valve in the sidewall that allows easy samples to be collected
- Vitis bottom:
- Sloped floor: enables easier dump-out, cleaning, and other interior operations
- Tank mounting: can be either floor-mounted or mounted on PKW’s proprietary ring stand
Vitis Open-Top Stackable Wine Totes

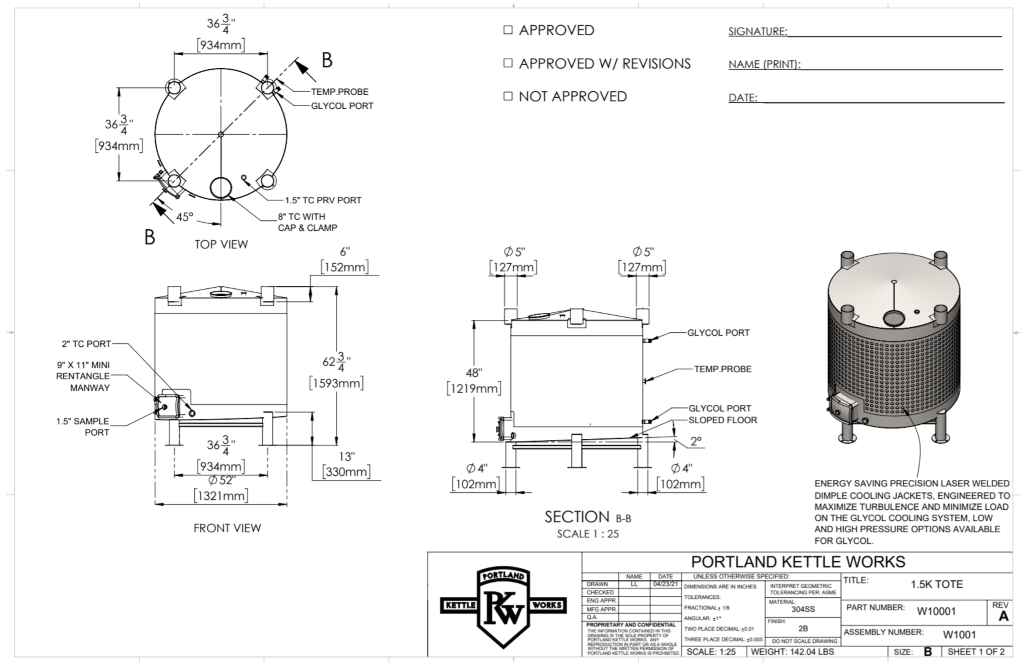

PKW Vitis Open-Top Wine Tote Spec Sheet, Page 1 (Click to download)

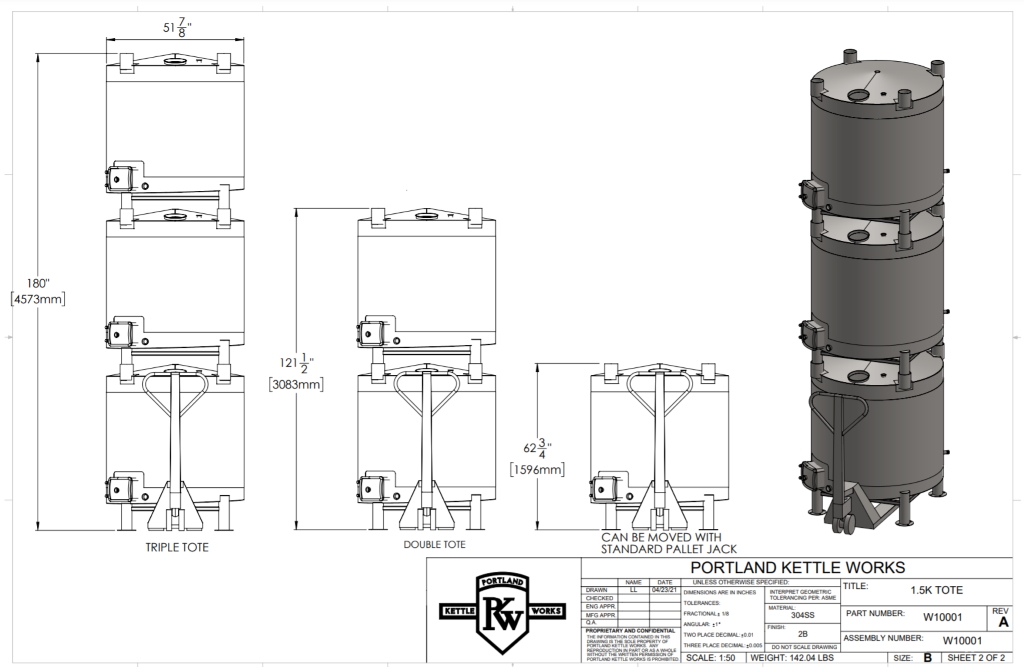

PKW Vitis Open-Top Wine Tote Spec Sheet, Page 2 (Click to download)
If you require custom open top wine totes for your winery, please ask us for help. We are masters of process engineering, and our highly skilled craftsmen have manufactured stainless steel tanks of all kinds and sizes for multiple industries. Regardless of your needs, you will not find higher quality equipment than the tanks manufactured by Mixing Tanks USA.
Mixing Tanks USA is a business unit of Portland Kettle Works (“PKW”). Portland Kettle Works was founded in 2011 to build the highest quality stainless steel brewing and beverage equipment applications. Since then we have built and installed over 375 breweries and thousands of mixing and storage tanks worldwide. We’ve now expanded into producing the highest quality mixing and storage tanks for a variety of applications. If you need high-quality stainless steel mixing and storage tanks for conventional or custom applications, contact us and we can help you, too. And if you’re interested in the world’s best stainless steel craft beer and beverage brewing equipment, All Made in the USA, click here to visit Portland Kettle Works official brewing equipment website.
